Digital board infrared Interactive whiteboards Side boards with IFPD For School
Detail produk:
| Tempat asal: | Shenzhen, Cina |
| Nama merek: | iBoard |
| Sertifikasi: | CCC, CE, FCC, RoHS |
| Nomor model: | IB-69 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 2 pcs |
|---|---|
| Harga: | USD320-450 per set |
| Kemasan rincian: | Paket Karton |
| Waktu pengiriman: | 10-20 hari |
| Syarat-syarat pembayaran: | T/t |
| Menyediakan kemampuan: | 6000 Unit per Bulan |
|
Informasi Detail |
|||
| Efek Ukuran Objek Sentuh: | >8mm | Metode sentuh: | jari atau benda buram |
|---|---|---|---|
| Akurasi penentuan posisi: | <2mm | Pelabuhan Penghubung: | USB2.0 USB3.0 |
| Sistem Operasi: | windows | Catu daya: | AC 100-240V, 50/60Hz |
| Penyimpanan: | Suhu: -30 ° C ~ 60 ° C Kelembaban: 0%~ 95% | Operasi: | Suhu: -10 ° C ~ 45 ° C Kelembaban: 10%~ 90% |
| Warna: | Hitam, warna lain opsional -- Abu-abu, Perak/Hitam | Hotkey: | dengan tombol pintas untuk papan samping |
| Nama: | Papan Digital Papan Interaktif Cerdas | Dilipat: | Opsional |
| Jenis: | Papan rekaman pintar untuk sekolah | Ukuran: | Cocok untuk IFPD 75 inci, tersedia 86/98 inci |
| Titik sentuh: | Poin sentuhan tunggal | Aplikasi: | Pengajaran Sekolah, Pendidikan Kelas, Presentasi |
| Jaminan: | 3 tahun | Ketepatan: | 2mm |
| Instalasi: | Pemasangan di dinding, dudukan seluler (opsional) | Papan samping: | Papan hijau untuk kapur, papan tulis untuk penanda |
Deskripsi Produk

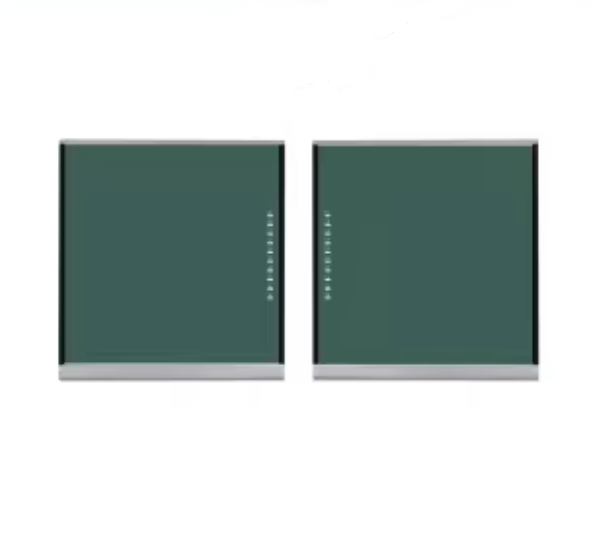

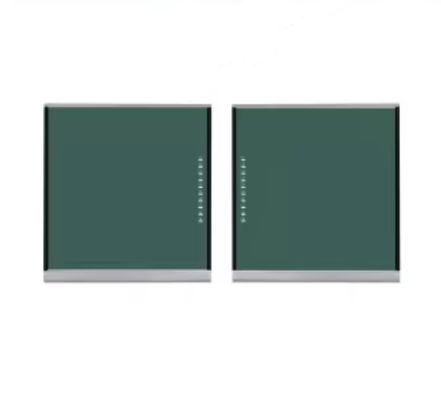

Digital boards Infrared side boards for IFPD
Recoradble side boards work with Interactive flat panel, we also call it Interconnected interactive whiteboard, it combined with interactive whiteboard (Electronic Green board/Black board/Whiteboard)+ IFPD to achieve dual board interconnection and interactive function.
Green board/ Whiteboard
It can be written with any ordinary whiteboard pen for white board; chalk and dustless chalk for green/black board, without damaging the surface and has strong wear resistance.

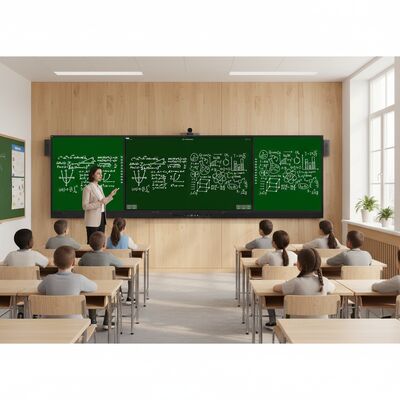

With our intelligent board, teachers can use electronic green board for traditional writing. It supports to save the annotation of the green board, forming the combination of intelligent teaching and traditional blackboard writing.
The writing on the green board can be saved as records according to the requirements of teachers,so as to send them to students as review materials.

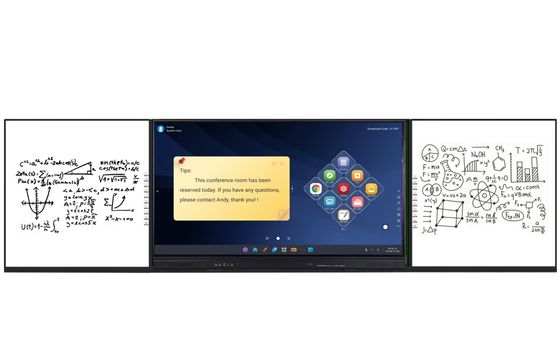

2 Infrared side boards , work with 75 inch interactive flat panel display, total length around 4.2m, height 1.03m, side boards in Green/ Black board for chalk writing, white board for marker writing.
Optional Side boards for 86 inch/ 98 inch Smart board, come with Wndows special whiteboard software for the side boards, writing, save and shared.
Drawing dimension for reference( 75 inch smart board+ AB side boards.)

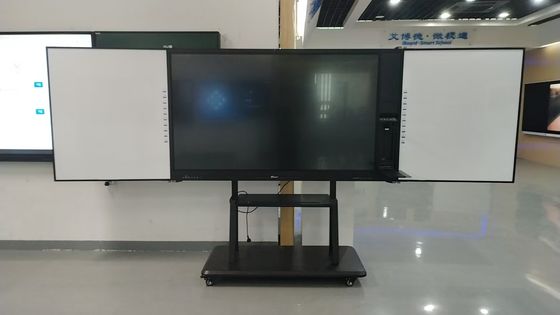

Optional in Smart board+ A side board
For more details, please feel free to contact our sales team: osd019@touch-easy.com
| Appearance | To match with the main display unit |
| Size | Customized as per the height of main display unit |
| Surface Selection | Whiteboard/Greenboard |
| Touch Technology | Infared touch |
| Touch method | Finger, Pointer or any other opaque object |
| Gesture Recognition | Support |
| File Saving | Support saving files as PPT/Word/PDF/image format. |
| Touch Point | 1 for side board, 20/50 for smart board |
| Cursor Speed | 180 dot /s |
| Touch Resolution | 32768x32768 |
| Effect Touch Object Size | >8mm |
| Touch Method | Finger or Pen |
| Positioning Accuracy | <2mm |
| Touch lifetime | More than 60,000,000 single touch or click |
| Connecting Port | USB 2.0/3.0 |
| Operating System | Windows , Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 200mA at 5V) |
| Working Condition | Indoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
