| Tempat asal: | Cina |
|---|---|
| Nama merek: | iBoard/ OEM |
| Sertifikasi: | CE FCC ROHS |
| Nomor model: | LE-32 |
| Kuantitas min Order: | 10 buah |
| Harga: | USD50-USD3000 per pieces |
| Kemasan rincian: | Karton ekspor SKD atau pipa plastik, atau karton ekspor untuk layar sentuh bingkai sentuh IR |
| Waktu pengiriman: | 10 hari kerja |
| Syarat-syarat pembayaran: | L / C, T / T, Western Union |
| Menyediakan kemampuan: | 20000 Potongan Per Bulan |
| Nama Produk: | bingkai sentuh, bingkai sentuh IR, hamparan layar sentuh inframerah, kit sentuh IR, hamparan bingkai | Resolusi: | 32768 x 32768 |
|---|---|---|---|
| Tipe: | Teknologi sentuh inframerah | Jenis antarmuka: | USB, Serial |
| Titik sentuh: | 10 Poin, dapat disesuaikan, 1 ~ 40 poin | Ukuran: | 22" 32" 42" 43" 49" 50" 55" 65" 70" 75" 80".. |
| Aplikasi: | Pengajaran, pertemuan, pelatihan, pendidikan | Sistem operasi: | MENANG, Android, MAC opsional |
| Antarmuka: | USB2.0 / 3.0 | Jaminan: | 2 tahun |
| Bahan: | Bingkai paduan aluminium | Warna: | Warna hitam atau disesuaikan |
| TEGANGAN PASOKAN: | DC 5V | Sumber Daya listrik: | bertenaga usb |

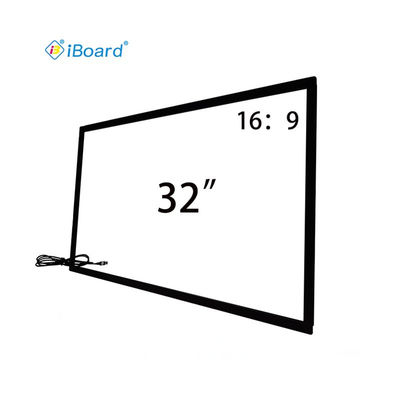

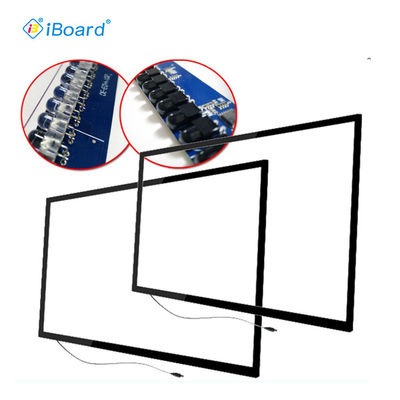

Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device. It support multi-touch, with smoothly writing experience.
Application
Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...
Available sizes
Size: 21.5”~300”
Customized sizes available
1~40 touch points available
SKD available
Specification
| Name | Specification |
| Touch Technology | Infrared Touch Technology |

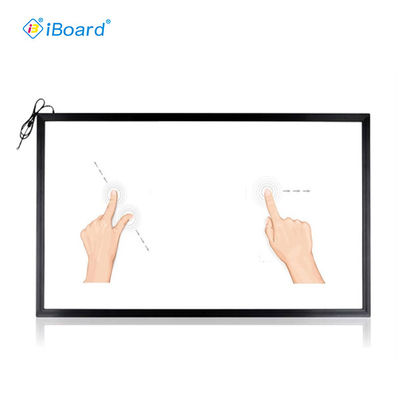

| Touch Points | 2, 10, 20, 40 touch points available |
| Touch Input Method | Finger, Pointer, Styplus pen or any other Opaque objects |
| Touch Interpolation | 32768 x 32768 |
| Respond Time | 5-10 ms |
| Touch Accuracy | ±2mm (over 90% Area) |
| Touch Durability | Unlimited |
| Available Size for Touch | Φ5mm |
| Supply Voltage | DC+5V±10% |
| Operating Current | <200mA for some sizes of some series; ≤500mA for some sizes of some series |

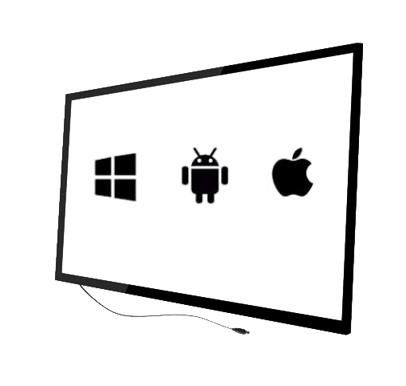

| Supporting System | Windows/Mac OS/Linux/Android/Chrome OS |
Packing
For multi-touch screen overlays with glass:
For multi-touch ir touch frame disassemble in SKD mode:
